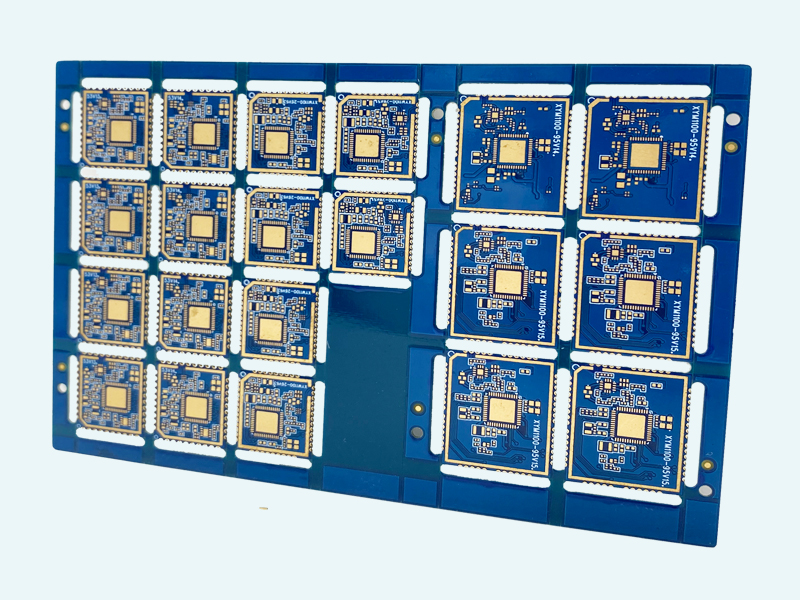

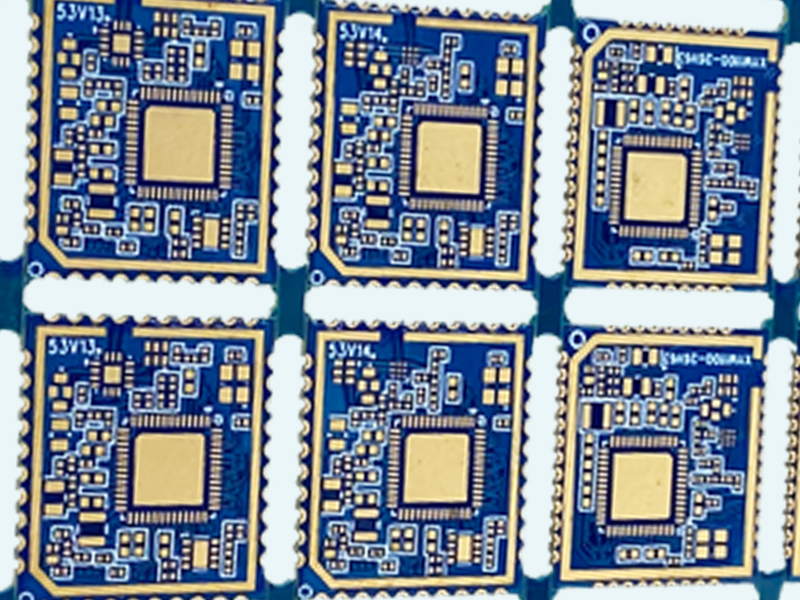

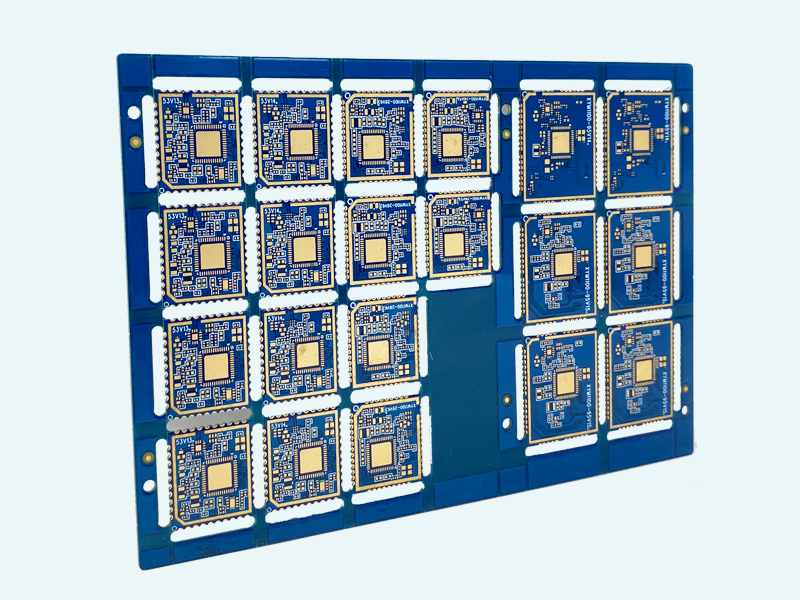

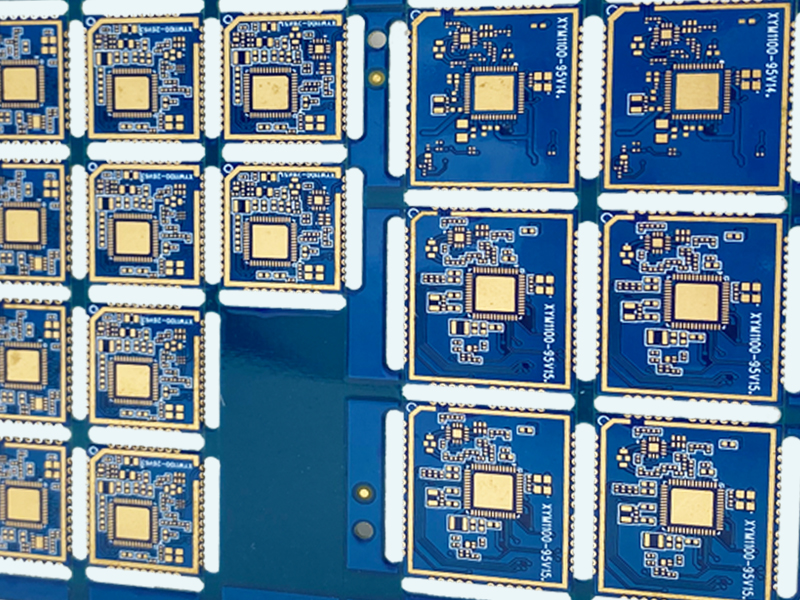

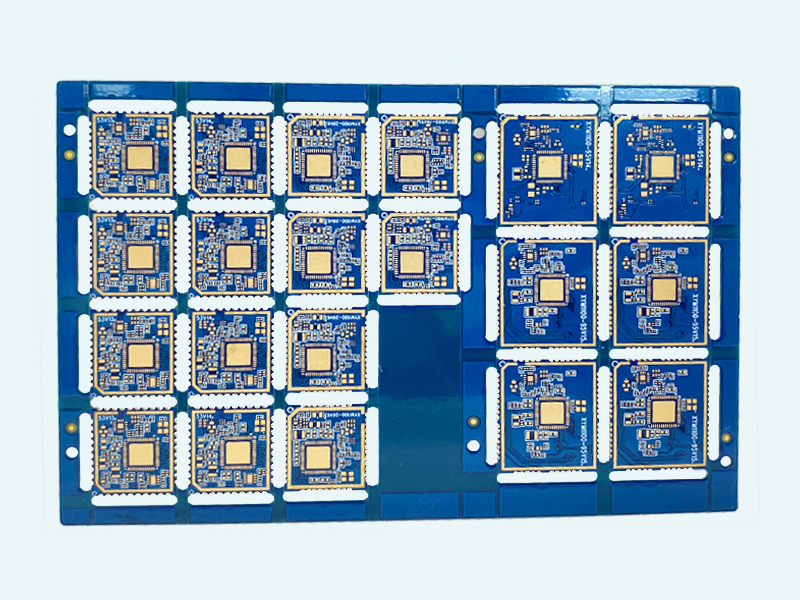

description: PCB half hole, When it comes to plated half hole, it also called castellated holes, which is plated with copper based on the specialized process on the edge of PCB. And plated half-holes are predominantly used for board-on-board connections, mostly where two boards with different technologies are combined.
Material: | FR4 TG150 | Layer: | 6L |
Board thickness: | 1.6mm | Min Hole: | 0.15mm |
Copper thickness: | 1 OZ | Solder mask: | Blue |
Min Width & Space: | 0.2mm/0.2mm | Silkscreen: | White |
Finishing: | ENIG 2u" | Application: | 5G communication devices |
Special: | HDI, Half-hole, impedance control, resin plugged | ||
